Frame

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

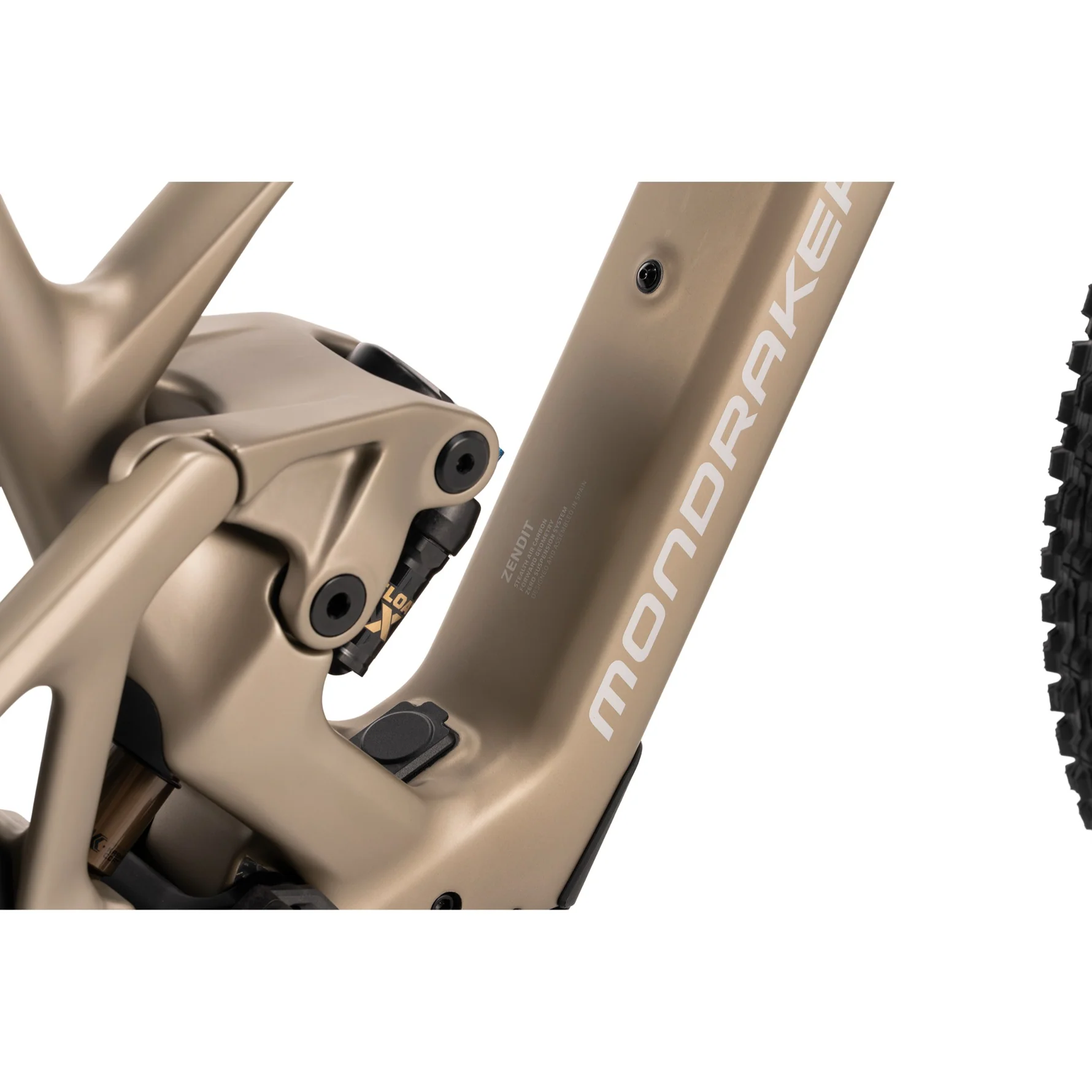

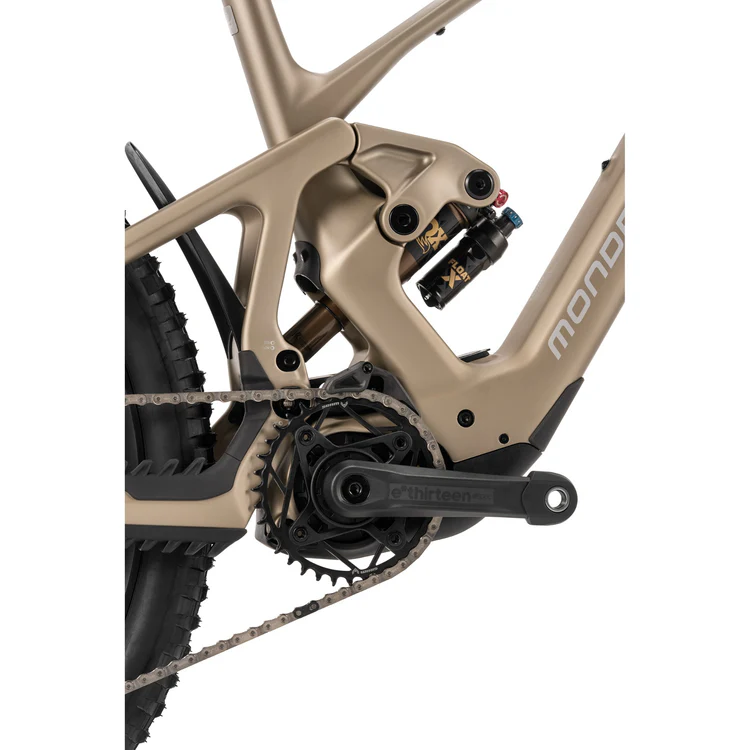

Rear shock

Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

Shock settings

CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers

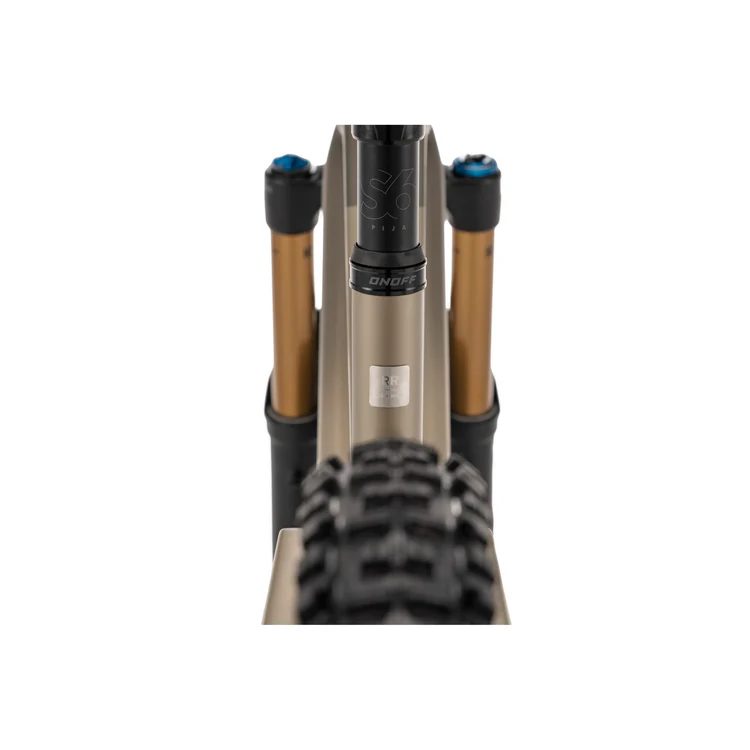

Fork

Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

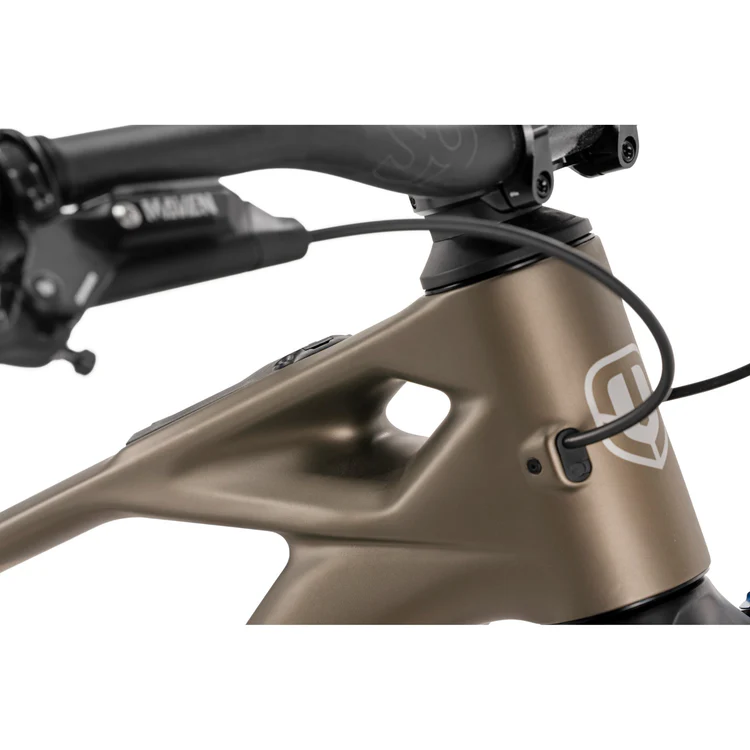

Headset

Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs, without blocklock.

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

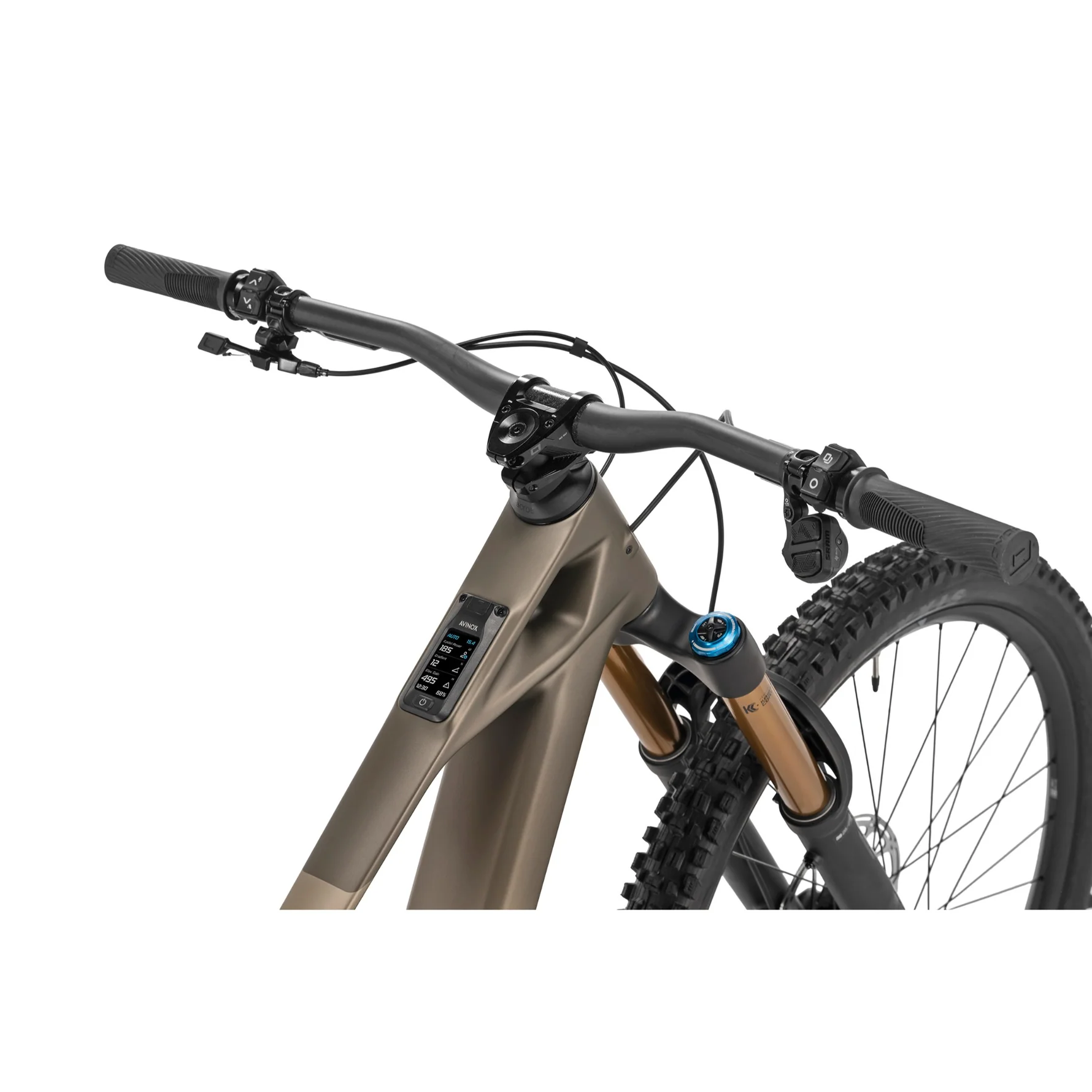

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle

Ergon SM10 E-Mountain Black.

Front brake

Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

Rear brake

Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.

Brake lever

Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust

Rims

DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.

Spokes

DT Swiss Straightpull spokes, DT Hybrid I, black

Front hub

DT Swiss 370, Boost 15x110mm, IS 6 bolts

Rear hub

DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub

Front tire

Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 27.5×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset

e*thirteen Helix Race e*spec alloy. All sizes: 155mm

Rings

Sram Eagle 36T T-Type, 104BCD, steel, CL55

Chain

Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

Rear derrailleur

Sram S1000 Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod Controller w/discrete clamp, 12s

Casette

Sram XS 1270, 10-52T, T-Type, 12s

Others

Sram AXS Extension Cord / Avinox 4A Charger

Weight

22.8 Kg

Display

Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Motor

Avinox M2S

Battery

Avinox 800Wh Battery
