Beskrivning

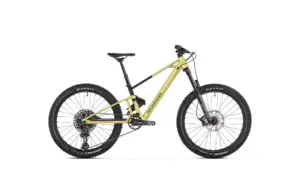

F-Trick tar över stafettpinnen från den gamla Factor-serien och finns i 24″ och 26″ varianter. Därför är F-Trick 24″ perfekt för barn mellan 8 och 11 år (135–155 cm) och F-Trick 26″ passar alla mellan 10 och 14 år (145–165 cm).
Frame:
F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.
Sizes:
One size: 300mm
Rear shock:
X-Fusion 02PRO R, 165×42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Shock settings:
A-Tune light compression
Fork:
X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset:
Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Beehive, 1lock-on, 135mm
Seatpost:
X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
Saddle:
SDG Fly JR
Front brake:
Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
Rear brake:
Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
Brake lever:
Shimano MT501, servo wave, alloy lever
Rims:
MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub:
DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub
Front tire:
Maxxis Minion DHF 24×2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
Rear tire:
Maxxis Minion DHR II 24×2.3, Tubeless ready, EXO Protection, 60TPI, folding bead
Crankset:
Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm
Rings:
30T, steel
Bottom bracket:
Prowheel PW-MBB73 73mm
Pedals:
SDG Slater JR
Chain:
Shimano Deore M6100, 12s, Quick-link
Rear derrailleur:
Shimano Deore M6100, SGS, Shadow+, 12s
Shift levers:
Shimano Deore M6100, Rapid Fire Plus, 12s
Casette:
Shimano Deore M6100, 10-51T Hyperglide+, 12s
Derailleur hanger:
UDH
